HOT WATER FILTER

Order No.: 4-200100

Protects water pipe fittings from damage caused by sand, lime-scale and rust at your home.
Filters out the floating solid particles from the wall of water pipes. Recommended for use in
flats with central hot water supply.

Technical data:

Maximum output               2.4 m3/h
Operating pressure          10 bar
Operating temperature     5-90 °C
Pipe connection               3/4"
Diameter                         130 mm
Length                            308 mm

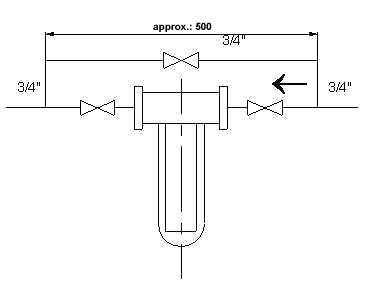

Installation space             250 mm
Length of filter element    115 mm



Characteristics:

Transparent housing
Polypropylene filter head
Brass connection fitting
Simple installation & maintenance
